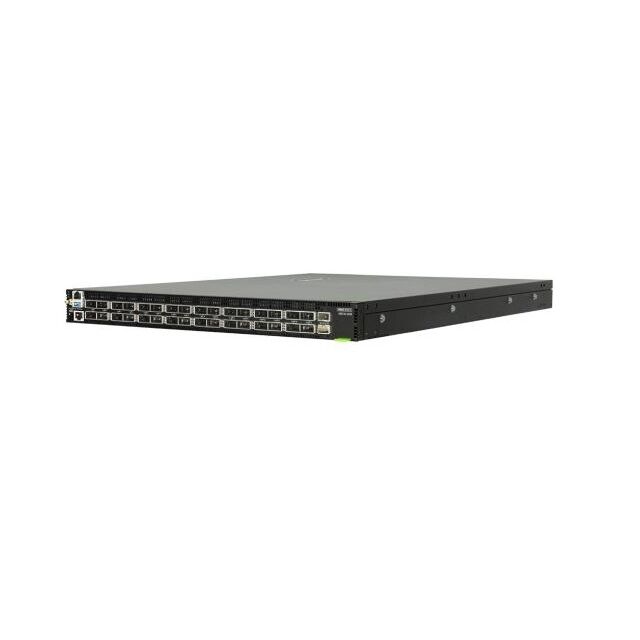

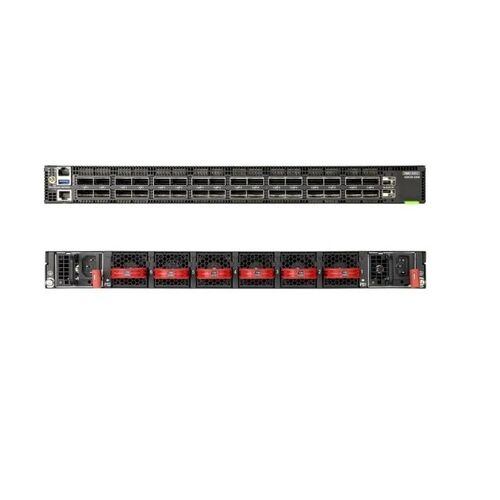

El Switch Edgecore DCS240 es un conmutador de rack o columna vertebral para centros de datos de alto rendimiento.
El conmutador DCS240 proporciona conmutación L2 y L3 de velocidad de línea a través de los 32 puertos QSFP-DD, cada uno de los cuales admite 1 x 400 GbE o 1 x 100 GbE, o mediante cables de conexión 2 x 200 GbE, 4 x 100 GbE o 4 x 25 GbE.
El Switch Edgecore DCS510 se puede implementar como un conmutador principal que admite interconexiones principales de 100/400 GbE.
Este conmutador de Edgecore de red abierta está cargado con Open Network Install Environment (ONIE), que admite la instalación de software de sistema operativo de red compatible, incluidas las opciones de código abierto, además de ofertas comerciales de sistema operativo de red (NOS).
<iframe width="560" height="315" src="https://www.youtube.com/embed/_-zfKJ0gxEU?si=W3iD3ygRNtRPCFHf" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>
Especificaciones técnicas Edgecore DCS240
Ports
■ Switch Ports: 32 x QSFP56-DD 400 GbE

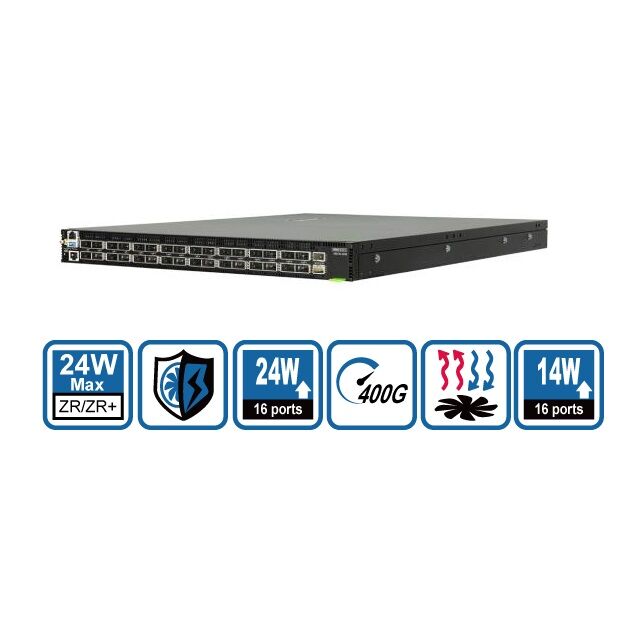

Power Budget: 24 W on upper 16 ports, 14 W on lower 16 ports
■ Management Ports on Port Side:
1 x RJ-45 serial console
1 x Micro USB console port
• Note: When both console ports are connected, only one is active. The Micro USB port has a higher priority.
1 x RJ-45 1000BASE-T management
2 x SFP+ 10G management
1 x USB 3.0 storage port
■ Supported Transceivers and Cables:
40GBASE-SR4/LR4
40G-DAC Cable
100GBASE-SR4/CWDM4/LR4
100G-DAC/AOC Cable
400GBASE-FR4/ZR
400G-DAC/AOC Cable
• Note: More optics and detailed cabling information can be found at www.edge-core.com.
Key Componets
■ Switch Silicon: BCM56880 Trident 4 12.8 Tb/s
■ CPU Modules:
Processor: Intel® Pentium® Processor D1519 4-cores 1.5 GHz
SPI Flash: 32MB x 2
Memory: DDR4 SO-DIMM 8GB x 2 with ECC support
Storage: m.2 NVMe SSD 64GB x 1 MLC
Performance
■ Switching Capability: 12.8 Tbps
■ Forwarding Rate: 5.4 Bpps
■ Jumbo frames support up to 9416 bytes
■ Packet Buffer Size: 132 MB SmartBuffer
■ MAC Addresses: max. 384K
Physical and Environmental
■ Dimensions (WxDxH): 43.84 x 59 x 4.35 cm (17.26 x 23.23 x 1.71 in.)
■ Weight: 11.85 kg (26.12 lb), with 2 PSUs and 6 fans installed
■ Fans: Hot-swappable 5 + 1 redundant fan
■ Storage Temperature: -40°C to 70°C ( -40°F to 158°F)
■ Operating Temperature:
(FtoB): 0°C ~ 45°C (32°F ~ 113°F) (BtoF): 0° C ~ 35° C (32°F to 95°F)
■ Operating Humidity: 5% ~ 95% non-condensing
Soſtware
■ Switch is loaded with Open Network Install Environment (ONIE)
soſtware installer
■ Compatible with the following NOS options: open source
options, plus commercial NOS offerings.
Power
■ PSUs: 2 redundant, load-sharing, hot-swappable AC
■ AC input ranges:
100-180VAC at 50-60Hz (1000 W max.) *
200-240VAC at 50-60Hz (1500 W max.)
*200-240VAC may be required for power redundancy under full
loading.
AC Inlet: IEC 60320 C14
■ Power Consumption
Min. (w/o transceivers): 396 W@100VAC/386 W@240VAC Max. (w/o transceivers): 714 W@100VAC/653 W@240VAC
Regulatory
■ Emissions:
EN 55032:2015+AC:2016, Class A EN 61000-3-2:2014, Class A
EN 61000-3-3:2013
FCC Class A
■ Immunity:
EN 55035:2017
EN 55024:2010+A1:2015
IEC 61000-4-2/3/4/5/6/8/11
■ Safety:
UL (CSA 22.2 No 62368-1 & UL62368-1) CB (IEC/EN60950-1 & IEC/EN 62368-1)
■ Environmental:
GR63-CORE (Pre-test)
■ RoHS-2.0 Compliant
■ Electrical and Electronic Equipment (WEEE Directive
2002/96/EC)
